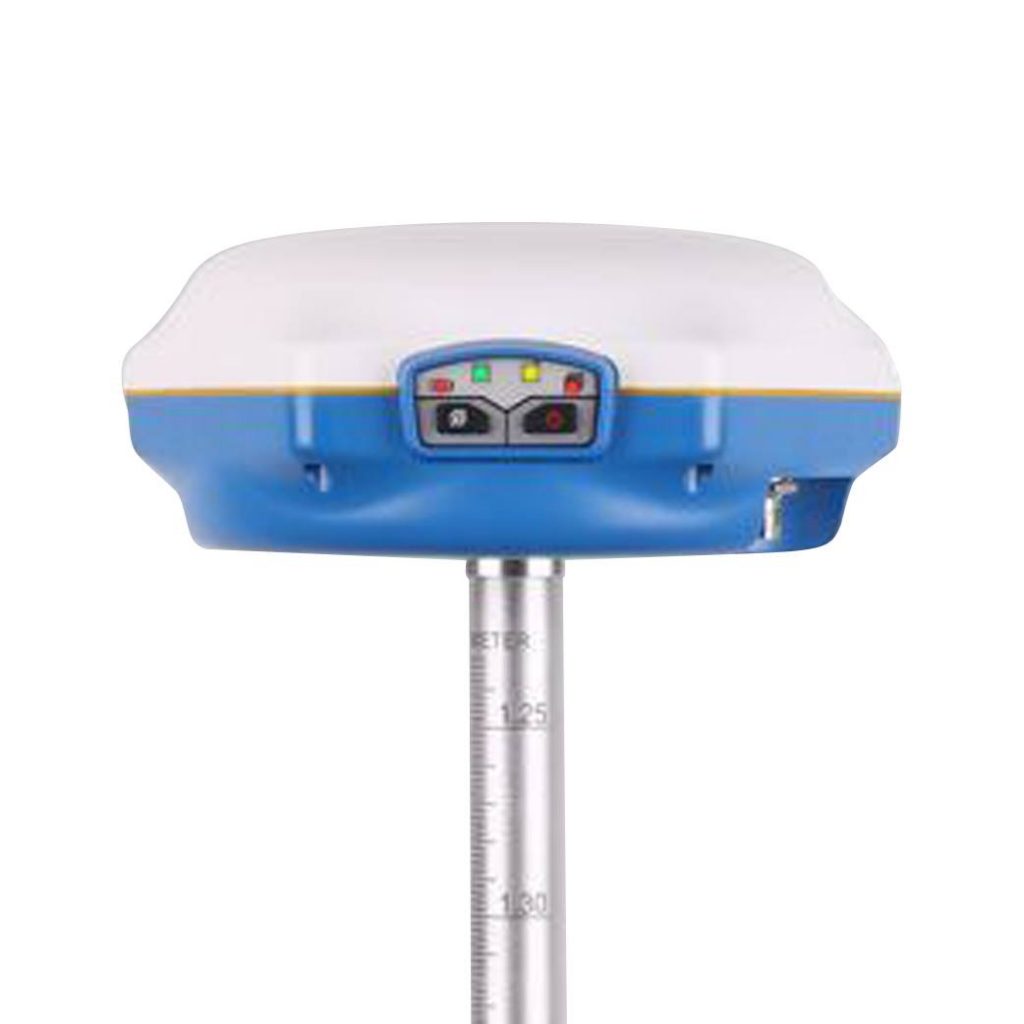

CHC SINOV M5 GNSS RECEIVER FOR SALE

The M5 GNSS dual frequency receiver leverages the latest GNSS technology by integrating 192 channels with the ability to track GPS, GLONASS and Beidou and it uses a field software dedicated to topographic and construction surveying.  The M5 series is one of the most cost-effective GNSS receivers selected by a large number of surveyors for its outstanding performance and reliability.

PRICE: N 2,800,000 (Two Million Eight Hundred Thousand Naira Only)

Technical Specifications

GNSS Characteristics

192-channel signal tracking

-GPS:L1,L2,L5

-GLONASS:L1,L2

-BeiDou:B1, B2, B3

Advanced multipath mitigation technology

Performance specifications

Real Time Kinematics(RTK)

-Horizontal:10mm + 1ppm RMS

-Vertical: 15mm + 1ppm RMS

Post Processed Static

-Horizontal:8mm + 1ppm RMS

-Vertical: 10mm + 2ppm RMS

Communications

1XR232 serial port

1x high speed USB

Integrated Bluetooth

Integrated GSM/GPRS modem

Radio modem

Protocols:

-RTCM2.x, RTCM3.x,CMR

-NMEA0183 output

-HCN output for GNSS raw data(convertible to RINEX static format)

Data Storage

4GB internal storage memort

GPS device mounts as a USB external hard drive (flash)
