Ever wondered how 3D laser scanning helps uncover what the human eye can’t see? Our team at OTIC Surveys Limited recently carried out a 3D laser scanning project at The Ark, Ogun State, one of the city’s most prominent ongoing developments.

The purpose of the survey was to create a digital twin of the entire structure to support façade cladding installation, following the client’s discovery of slight deviations between the physical building and the original architectural design.

Such differences, though subtle, can affect design accuracy and façade alignment during construction.

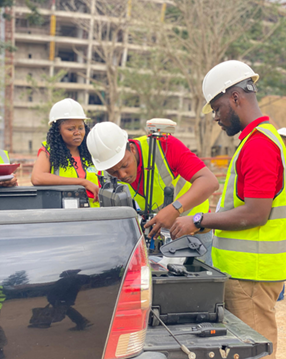

Using the SinoGNSS LS300 3D Laser Scanner, we captured millions of precise data points across the building’s structure.

This high-resolution dataset allows engineers and designers to detect and correct structural errors with millimeter-level accuracy, ensuring every façade element fits perfectly during installation.

With the 3D laser scanning completed, the data generated provides an unmatched advantage, revealing minute details that traditional tools or visual inspections could easily overlook and empowering engineers to make smarter, faster design decisions.

From Data to Digital Twin

The processed scan produced a highly accurate digital twin of the Ark, a detailed 3D representation that mirrors every curve, corner, and surface feature of the structure. This model will guide engineers in aligning façade components, verifying as-built conditions, and maintaining precision throughout the entire process, from concept to completion.

Building the Future with Technology

As landmark projects like The Ark embrace 3D scanning and digital construction workflows, Nigeria’s building industry continues to move toward a future defined by efficiency, accuracy, and intelligent design.

At OTIC Surveys Limited, we are proud to play our part in this transformation, delivering cutting-edge 3D scanning solutions that help architects, engineers, and contractors bring their visions to life with confidence and precision.

It’s truly fascinating how technology now allows us to see beyond the visible, bridging the gap between design intent and construction reality with remarkable accuracy. We can’t wait to see how stunning The Ark will look when the project is completed.
