In road construction, surveyors are the backbone of every successful project. They turn preliminary ideas into buildable, reliable plans.

The surveyor’s Key responsibilities include:

2.1 Defining Alignment, Elevation, and Terrain

Engineering surveyors perform detailed topographic and terrain surveys before design begins. These surveys gather data on land slopes, contours, elevation changes, natural drainage paths, existing infrastructure, and obstacles that influence alignment. This enables engineers to design a road that “fits” the land, horizontally and vertically, avoiding sharp curves, steep slopes, or drainage challenges.

Surveyors also define control networks and benchmarks, which are reference points on the ground that guide all subsequent construction measurements and staking. These provide a consistent spatial framework for the entire project.

2.2 Setting Out / Construction Layout & Monitoring

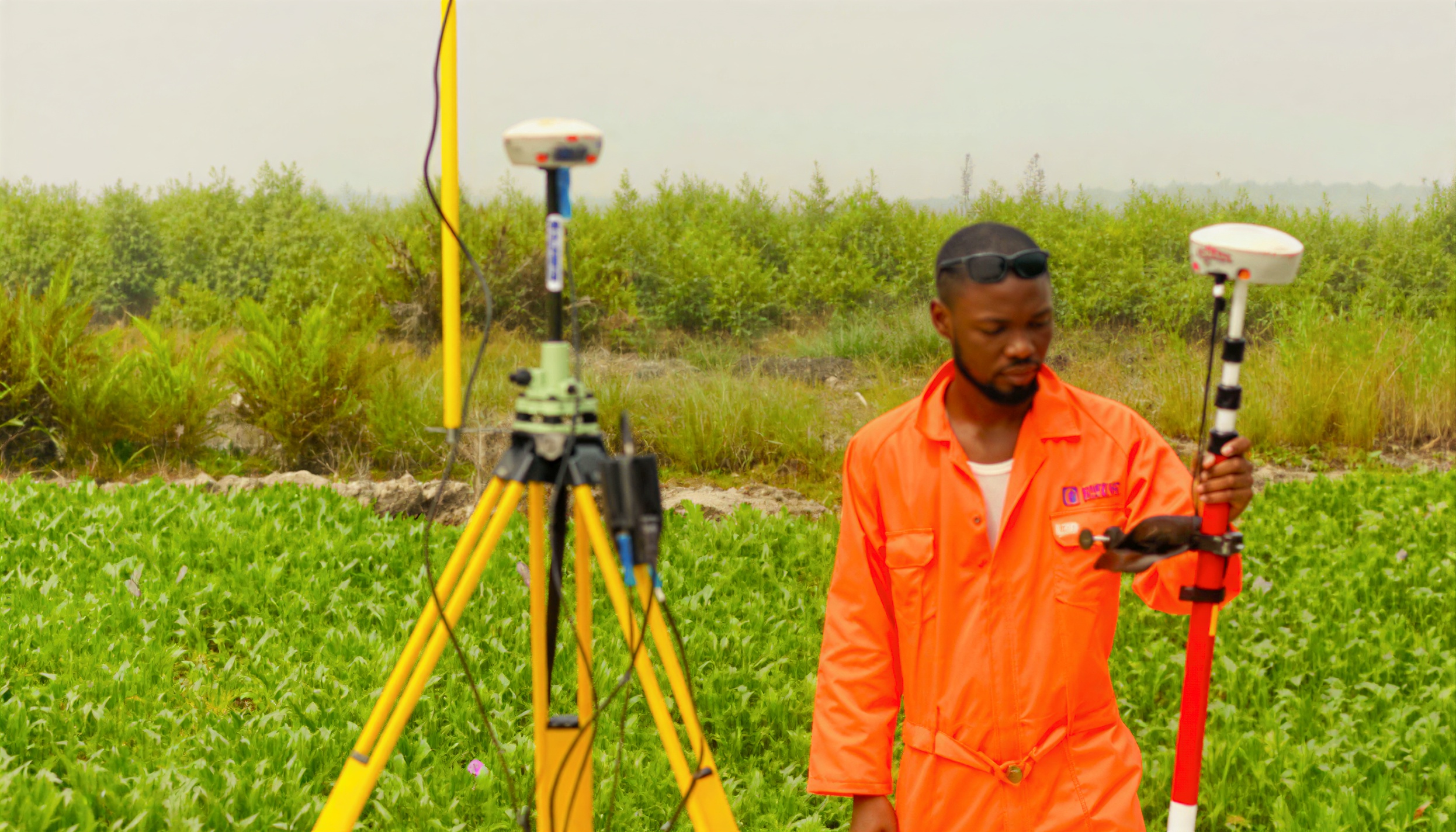

Once design drawings are ready, surveyors “set out” the road on the ground. They stake centre‑lines, shoulders, slopes, drainage lines, and any intersections or special features using instruments like total stations, levels, and GNSS systems. This ensures that construction follows the plan exactly, with correct alignment, width, gradients, and layout.

During construction, surveyors monitor progress to ensure compliance with design: checking earthwork volumes, elevations, slopes, drainage alignment, and material placement. Quality control is maintained by regular measurement and verification.

2.3 Geotechnical and Ground Condition Assessment (Where Required)

Before road design, surveyors (often in collaboration with geotechnical engineers) evaluate subgrade soil and ground conditions, soil type, bearing capacity, drainage characteristics, etc. In many road failures, a lack of or inadequate geotechnical investigation has been identified as a root cause.

Proper ground assessment informs decisions such as pavement thickness, sub-base design, drainage provisions, embankment slopes, and material selections, all of which are critical for long-lasting roads.

2.4 Drainage, Utility Mapping, and Right‑of‑Way Definition

Surveyors map natural drainage paths, existing watercourses, underground utilities (where possible), and property boundaries or legal right-of-way. Correct mapping ensures the road design accommodates water flows to avoid surface water trapping, flooding, or erosion, common causes of road failure.

Additionally, defining property boundaries and legal right‑of‑way avoids encroachment issues, eases approval and permitting, and prevents future legal disputes.

2.5 As‑Built Surveys and Documentation

After the completion of road construction, surveyors conduct as‑built surveys, recording final dimensions, elevations, slopes, drainage structures, and layout, then comparing them against design specifications. This creates a permanent record for future maintenance, expansion, or rehabilitation. This documentation safeguards both the contractor and client, confirming that the road was constructed according to the plan, and provides a baseline for future asset management or upgrades. greatermelbournesurveyors.com.au+1
